If you drive a car with a manual transmission, you might be startled to learn that it has many clutches. Automobiles with automatic transmissions, it comes out, have clutches as well. Many objects you likely see or use often have clutches: several wireless drills, chain saws, as well as some yo-yos contain clutches.
People often wonder how clutch plates work. Therefore in this article, we’ll explain to you why you need a clutch, how your car’s clutch works, and how to fix some common problems related to it.
Introduction
Clutches are beneficial in equipment with two spinning shafts, such as automobiles. One shaft is usually powered by a pulley or motor, while the second shaft is used to power another equipment. The clutch links the two shafts, allowing them to be locked together and rotate at the very same speed, or disengaged and rotate at different rates.
A clutch is required in a car since the engine rotates continuously but the wheels really don’t. The wheels must be detached from the engine in such a way for an automobile to stop without destroying the engine. By managing the slippage here between the transmission and the engine, the clutch allows us to seamlessly engage a spinning engine with a non-spinning transmission.
Knowing just a little bit about the friction that is referred to as how difficult it is to slide one thing over the other, will help you comprehend how a clutch works. The highs and lows that are components of every surface produce friction – even the smoothest surfaces have minuscule highs and lows. The more highs and lows (Peaks and Valleys) there are, the more difficult it is to move the object.
The friction between the clutch plate and the flywheel is what makes a clutch work.
Here is a complete understanding of how these components interact and How do clutch plates work.

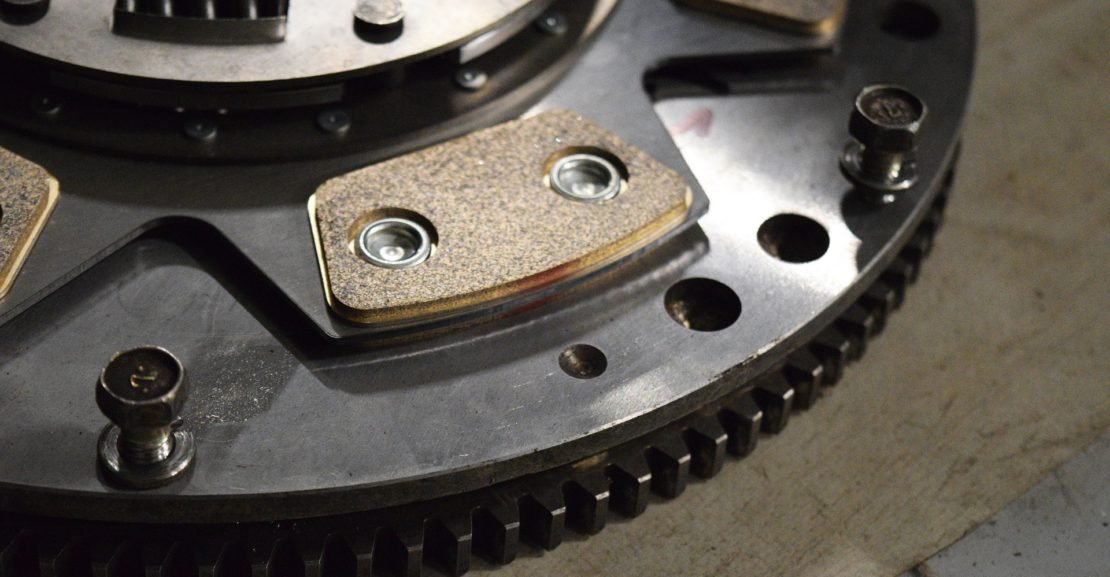

Fly Wheels, Friction, And Clutch Plates
As far as the car’s clutch is concerned, a flywheel connects to the engine, and a clutch plate connects to the gearbox or transmission.
In a manual car, when you take your foot off the clutch pedal, spring presses the pressure plate against the clutch disc, which presses against the flywheel in return. This connects the engine to the input shaft of the transmission, forcing both to spin at the same speed.
The clutch’s holding power is determined by the friction between the clutch plate and the flywheel, as well as the force exerted on the pressure plate by the springs. The friction force in the clutch works similarly to the brake blocks except that instead of weight driving the block into the ground, the clutch plate is pressed by the springs.
What A Clutch Does When It Is Pressed Or Released?
When the clutch pedal is engaged, a cable or hydraulic piston presses on the release fork. This forces the release bearing against the center of the diaphragmatic spring, which disconnects the engine from the transmission during gear shifts.
A number of pins at the edge of the diaphragm spring cause the spring to draw the pressure plate away from the clutch disc as the middle of the spring is pushed in. The clutch is now detached from the rotating engine.
Take note of the clutch plate’s springs. These springs aid to cushion the impact of the clutch impacting on the transmission.
This structure works well most of the time, although it does have a few flaws.
In the next sections, we’ll explore some common clutch issues and various clutch applications.
Common Problems
Clutches can last beyond 130,000 kilometers if used gently and properly maintained. Clutches can begin to fail at 56000 kilometers if they are not properly maintained.
Cars or Trucks that are routinely overloaded can have clutch problems, even if they are new.
The frictional layer on the disc wears out, which is the most prevalent problem with clutches. The friction material on a clutch plate is identical to the friction material on the pads of the disc brake or to the drum brake shoes in that it fades away over time.
The clutch will start to slip when most or all of the friction material is gone, and it will finally stop transmitting power from the engine to the wheels.
Only when the clutch disc and the flywheel rotate at various rates does the clutch deteriorate. The friction material is kept tightly against the flywheel when they are locked together, and they rotate in unison. Whenever the clutch disc slips against the flywheel, it begins to wear. So, if you’re the sort of driver who frequently slips the clutch, your clutch will burn out much faster.
The issue isn’t always slipping, but rather sticking. If your clutch fails to release properly, the input shaft will spin. This can lead your vehicle to grind or altogether stop it from shifting into gear.
Reasons Why Clutches May Stick:
- Damaged or strained clutch cable: The clutch cable requires the proper amount of tension to successfully push and pull.
- Defective or leaky clutch cylinders: Leaks prevent the cylinders from reaching the required pressure.
- Air inside the hydraulic line: Air interferes with hydraulics by occupying the space that the fluid requires to produce pressure.
- A misaligned linkage: It sends the incorrect level of force when your foot contacts the clutch pedal.
- Incompatible clutch parts: Not all replacement clutch parts are compatible with your clutch.
Another common issue is a “hard” clutch. To fully depress any clutch, it takes a certain amount of force. There’s indeed something wrong if you have to press hard on the pedal. Likely reasons include locking or binding in the pedal linkage, cable, pivot ball, or cross shaft. A hard clutch could also be caused by a blockage or damaged seals within the hydraulic system.
A damaged clutch release bearing, also known as a throw-out bearing, is another issue with clutches. To disengage the clutch, this bearing provides force to the rotating pressure plate. If the clutch shows out a rumbling sound, you may have an issue with the damaged clutch release bearing.
Diagnostic Test for Clutches
If you do not really hear any sound throughout these four procedures, it’s unlikely that the clutch is the source of your problem. It could be a problem with the contact point between both the release fork and the pivot ball which supports it if you hear the noise at idle and it fades away as you push the pedal.
- Turn on your vehicle, engage the handbrake, and shift into neutral.
- Check for a growling noise when your car is idle without using the clutch. If you hear anything, it’s most probably a transmission issue. Continue to step three if you do not really hear anything.
- Start pushing the clutch while the car is in idle and neutral position and check for noises. It’s most probably the clutch release bearing if you hear a buzzing noise when you press. Continue to step four if you don’t hear anything at this step as well.
- Depress the clutch pedal all the way to the ground. If you hear screeching, it’s most likely the pilot bearing or bushing that connects the input shaft of the transmission to the crankshaft.
Types of Clutches
In your automobile and garage, there are a variety of clutches to choose from.
Various Clutches
There are various clutches in an automatic gearbox. Different sets of planetary gears are engaged and disengaged by these clutches that are made up of a central drive gear surrounded by gears that circle it. A pressurized hydraulic fluid is used to move every clutch in an automatic transmission. Springs enable the clutch to disengage when the tension lowers. The interior and exterior of the clutch are lined with equally spaced ridges known as splines that lock onto the gears and clutch box.
Electromagnetic Clutch
An electromagnetic clutch is used in a car’s air conditioning compressor. This enables the compressor to turn off while the engine is still operating. The clutch starts processing when current passes via a magnetic coil in the clutch. The clutch disengages whenever the current is interrupted, as when you switch off the air conditioner.
Thermostatic Viscous Clutch
Many cars with an engine-driven cooling fan have a thermostatic viscous clutch, which is controlled by the temperature of the liquid. This clutch is located near the hub of the fan, in the airflow that passes through the radiator. As the clutch fluid thickens due to heat, the fan must spin faster to keep up with the engine rotation. The clutch liquid stays cold when the car is not hot, and the fan rotates slowly, enabling the engine to quickly heat up to its optimal operating temperature.
Limited Slip Differentials And Viscous Couplings
Limited slip differentials and viscous couplings, both use clutches to significantly bolster friction in vehicles. When you accelerate your car, one tire spins quicker than the other, making the vehicle difficult to control. With the help of its clutch, the slip differential compensates for this. The clutch activates when one wheel spins faster than all the others, slowing it down to equal the other three.
Centrifugal Clutches
Centrifugal clutches are found in gas-powered chainsaws and weed trimmers, allowing the strings to end spinning without needing to turn off the engine. The force is used to operate these clutches automatically.
Clutches are useful and necessary in a variety of situations.
FAQ’s
What is a clutch? How Do Clutch Plates Work
Clutches are beneficial in equipment with two spinning shafts, such as automobiles. One shaft is usually powered by a pulley or motor, while the second shaft is used to power another equipment. The clutch links the two shafts, allowing them to be locked together and rotate at the very same speed, or disengaged and rotate at different rates.
Why is a clutch used?
A clutch is required in a car since the engine rotates continuously but the wheels really don’t. The wheels must be detached from the engine in such a way for an automobile to stop without stopping the engine. By managing the slippage here between the transmission and the engine, the clutch allows us to seamlessly engage a spinning engine with a non-spinning transmission.
How long a clutch can last?
A clutch should last roughly 130,000 kilometers with adequate care and maintenance.
